HP PageWide Pro MFP 772/777 and HP PageWide Managed MFP P77740/P77750/P77760 - Removal and replacement: Document feeder reflector (MFP models only)

Follow these steps to remove the document feeder reflector.

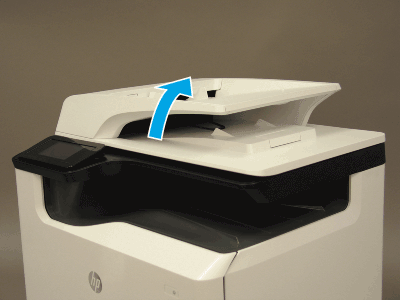

1. Open the sub scanner assembly (SSA).

   Open the SSA

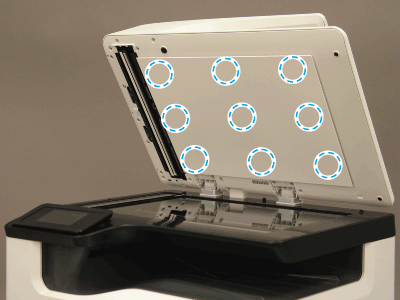

2. Before proceeding, take note of the location of the tabs that fasten the reflector to the document feeder.

   Locate the reflector tabs



3. Starting along the top edge of the reflector, carefully pull it away from the document feeder to release it.

   Release the reflector

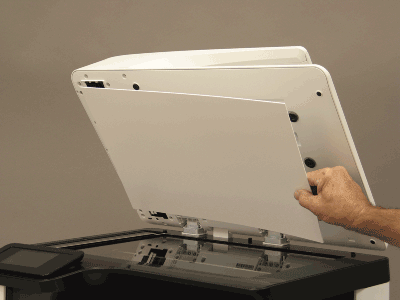

4. Remove the reflector.

   Remove the reflector

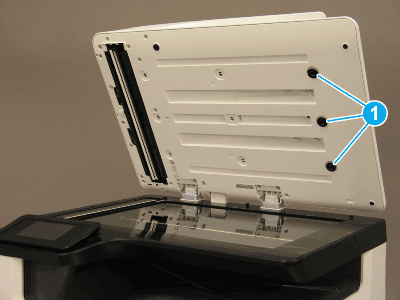

5. Check the document feeder for any reflector tabs (callout 1) that were not removed with the reflector. Remove any tabs still attached to the document feeder.

   Check the document feeder left over reflector tabs



Follow these steps to unpack the replacement assembly.

1. Dispose of the defective part.

   Note:

   HP recommends responsible disposal of the defective part.

   http://www8.hp.com/us/en/hp-information/environment/product-recycling.html

2. Unpack the replacement part from the packaging.

   CAUTION:

   Some parts are sensitive to electrostatic discharge (ESD). Always perform service work at an ESD-protected workstation or mat. If an ESD workstation or mat is not available, touch the sheet-metal chassis to provide a static ground before touching an ESD-sensitive assembly. Protect the ESD-sensitive assemblies by placing them in ESD pouches when they are out of the printer.

   Important:

   Make sure that all of the shipping materials (for example shipping tape) are removed from the replacement part prior to installation.

   Note:

   If the replacement part is a roller or pad, avoid touching the spongy part of it. Skin oils on the roller or pad can cause paper pickup and/or print-quality problems. HP recommends using disposable gloves when handling rollers or pads or washing your hands before touching rollers or pads.

3. To install an assembly, reverse the removal steps.

   Note:

   When applicable, special installation instructions are provided for an assembly at the end of the removal procedure. Always completely read the removal instructions and follow all special installation instructions.

Follow these steps to install the document feeder reflector.

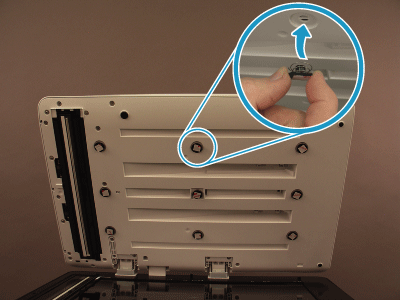

1. Install nine clips (provided in the kit) into the mounting holes in document feeder.

   Tip:

   The clips make an audible click when they are snapped into place.

   Install the clips

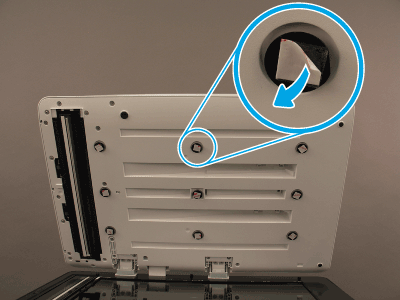

2. Peel the protective backing off of the adhesive pads on each clip.

   Important:

   Do not touch the exposed sticky side of the adhesive pad after removing the protective backing.

   Peel the protective backing off of the adhesive pads

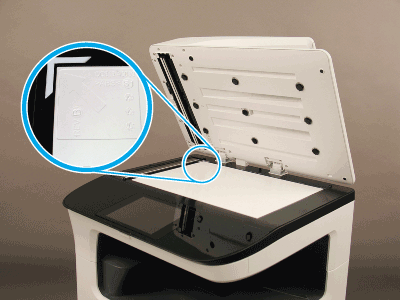

3. Place the reflector on the scanner glass.

   Important:

   Make sure that the embossed arrow on the reflector is orientated to the bottom-left corner.

   Place the reflector on the scanner glass

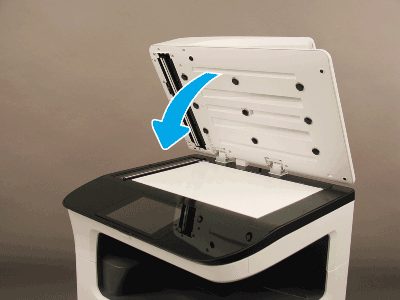

4. Close the document feeder.

   Close the document feeder

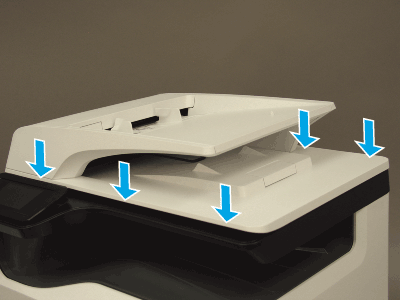

5. Push down on it to adhere the reflector to the mounting clips.

   Push down on the document feeder



6. Open the document feeder, and then push in on the nine reflector tabs to make sure they are fully adhered to the reflector.

   Important:

   Peel the protective plastic sheet off of the reflector.

   Check the reflector install
